Following a spy video a couple of weeks ago which announced the arrival of the long-anticipated 2017 Porsche 991 RSR, the German based carmaker has released the racing car today during a private event, along with a video presentation, which highlights the car`s impressive styling and performance under the hood.
The 2017 Porsche 911 RSR is set to be the fastest model built for racing series, and has all it needs to be compliant with the Le Mans 24 Hours GT regulations. So we expect it run at the Daytona 24-Hour Race, starting next January, following other tough 24-hour races.
As for the performance under the hood, the 2017 Porsche 911 RSR has it all – extreme power, high-performance sequential six-speed transmission, aerodynamics and advanced mechanics.
Other features also refer to the radar-supported collision warning system, new safety roll cage and adjustable racing seat inside, carbon fiber body panels, updated suspension system and much more.
We won`t spoil all the fun and let you watch the video presentation called: “Spearhead. The new 911 RSR”, but not before you get a closer look at the official and full details with the model, released by the carmaker itself.
2017 Porsche 911 RSR – Full Technical Details
Single-seater race car for the LM-GTE category
Weight ca. 1,243 kg (base weight per regulations)
Length 4,557 mm (without splitter, rear wing, diffuser)
Width 2,042 mm (front axle) / 2,048 mm (rear axle)
Wheelbase 2,516 mm
Water-cooled six cylinder boxer, positioned in front of the rear axle; 4,000 cm3, stroke 81.5 mm, bore 102 mm; ca. 375 kW (510 hp) depending on restrictor; four-valve technology; direct fuel injection; dry sump lubrication; single mass flywheel; power output limitation via restrictor; electronic throttle.
Six-speed sequential constant-mesh gearbox; two-shaft longitudinal layout with bevel gear; shifting via electronic shift actuator; shift paddles on the steering wheel; magnesium gearbox casing; multi-disc self-locking differential with visco unit; three disc carbon race clutch.
Weight-optimised chassis in combined aluminium steel design; removable roof hatch for cockpit access; lifting bushes integrated in the roof; FT3 fuel cell in front of the car; welded-in roll cage; seat pursuant to FIA 8862-2009; rigidly mounted to the chassis; six-point safety harness for use with HANS; longitudinally adjustable pedalry; bodywork made of CFRP, quick-change; rear wing with “swan neck” mounts; four-post air jack system with safety pressure valve; electronically activated fire extinguisher system; heated windscreen.
Front axle: double wishbone front axle; four-way vibration damper; twin coil spring setup (main and helper spring); anti-roll bars, adjustable by blade positions; electro-hydraulic power steering.
Rear axle: integrated rear axle subframe with double wishbone axle; four-way vibration damper; twin coil spring setup (main and helper spring); anti-roll bars, adjustable by blade positions; electro-hydraulic power steering; tripod drive shafts.
Two independent brake circuits for front and rear axle, adjustable via balance bar.
Front axle: One piece aluminium six-piston racing callipers with quick coupling; internally ventilated steel brake discs, 390 mm diameter; race brake pads; optimised brake cooling ducts.
Rear axle: One piece aluminium four-piston racing callipers with quick coupling; internally ventilated steel brake discs, 355 mm diameter; race brake pads; optimised brake cooling ducts.
Front axle: One piece forged light alloy wheels, 12.5Jx18 offset 25 with centre lock nut; Michelin slick 30/68-18.
Rear axle: One piece forged light alloy wheels, 13Jx18 offset 37 with centre lock nut; Michelin slick 31/71-18.

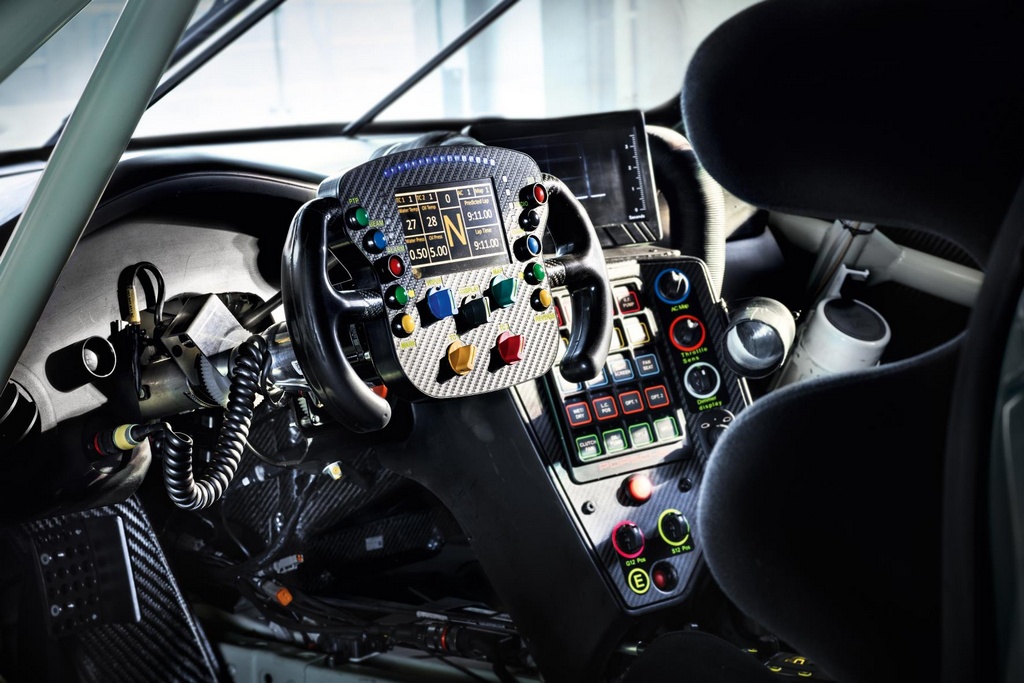

Cosworth Central Logger Unit; CFRP multi-functional steering wheel with integrated display; shift paddles and quick release; Collision Avoidance System; controlled alternator in connection with LiFePo4 battery; LED headlights; LED taillights plus rain light; illuminated car number and leader light system; black light inside cockpit; electric adjustable wing mirrors with memory function; tyre pressure monitoring system (TPMS); drink system; air conditioning system; membrane switch panel on centre console with fluorescent labelling.
